Synaptic Plasticity Networks: From Basics to Advanced Applications

Introduction

In the ever-evolving field of artificial neural networks, researchers and engineers are continually seeking inspiration from  biological systems to create more adaptive and efficient learning models. One such innovation is the Synaptic Plasticity Network (SPN), a biologically-inspired architecture that combines elements of traditional neural networks with mechanisms that mimic the  plasticity of biological neurons. In this blog post, we’ll explore the concept of Synaptic Plasticity Networks from the ground up, delving into their components, functionality, and practical applications.

Table of Contents

1. The Basics of Neural Plasticity
2. Architecture of Synaptic Plasticity Networks
3. Components in Detail
4. Putting It All Together: The Synaptic Plasticity Network
5. Implementation in PyTorch
6. Practical Applications and Use Cases
7. Advanced Concepts and Future Directions
8. Conclusion

The Basics of Neural Plasticity

Before diving into the intricacies of Synaptic Plasticity Networks, it’s crucial to understand the biological concept that inspired this architecture.

Neural plasticity, also known as neuroplasticity or brain plasticity, refers to the brain’s ability to change and adapt as a result of experience. This plasticity is what allows our brains to form new neural connections throughout life, enabling us to learn, remember, and recover from brain injuries.

In biological neurons,  synaptic plasticity is the ability of synapses to strengthen or weaken over time in response to increases or decreases in their activity. This mechanism is thought to play a major role in the capacity of the brain to acquire new knowledge and skills.

Artificial Synaptic Plasticity Networks aim to mimic this adaptive behavior in artificial neural networks, allowing them to dynamically adjust their internal representations based on input patterns and temporal context.

Architecture of Synaptic Plasticity Networks

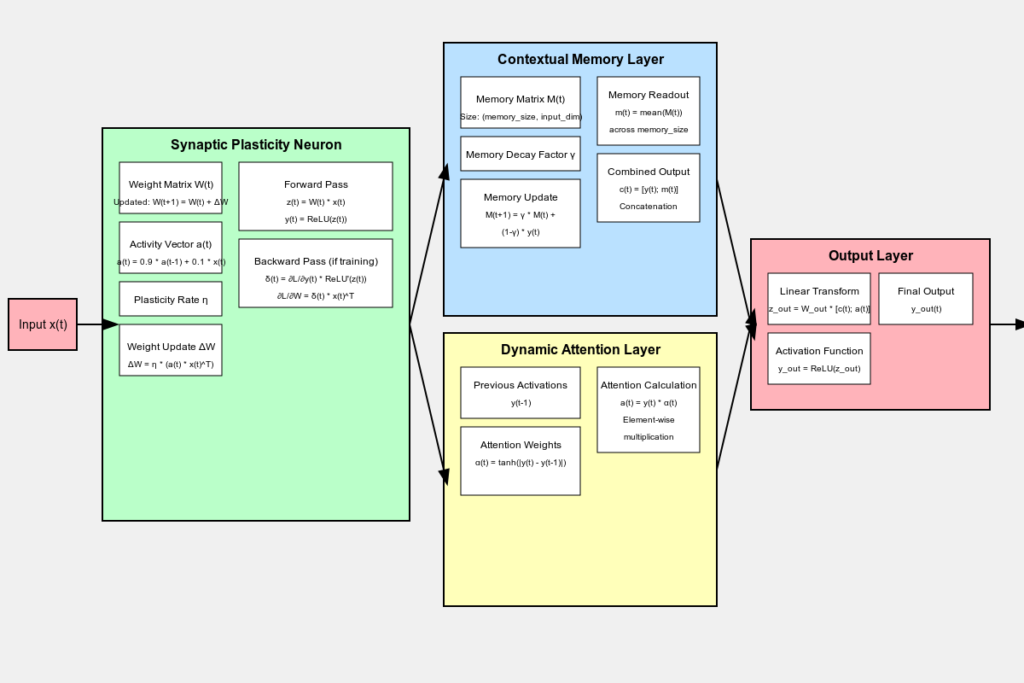

Let’s examine the architecture of a Synaptic Plasticity Network, as illustrated in the following diagram:

The Synaptic Plasticity Network consists of three main components:

1. Synaptic Plasticity Neuron
2. Contextual Memory Layer
3. Dynamic Attention Layer

These components work together to process input data, adapt to patterns, maintain context, and focus attention dynamically. Let’s explore each component in detail.

Synaptic Plasticity Neuron

The Synaptic Plasticity Neuron is the foundational building block of the network. It’s designed to mimic the adaptive behavior of biological neurons.

Key features:
- Activity update: Maintains a running average of neuron activity.
- Weight update: Adjusts synaptic weights based on correlated activity.
- Non-linear activation: Applies a non-linear transformation to the output.

Here’s a simplified implementation of the Synaptic Plasticity Neuron:

class SynapticPlasticityNeuron(nn.Module):
 def __init__(self, input_dim, output_dim, plasticity_rate=0.01):
   super(SynapticPlasticityNeuron, self).__init__()
   self.fc = nn.Linear(input_dim, output_dim)
   self.plasticity_rate = plasticity_rate
   self.activity = None
def forward(self, x, training=False):
 if self.activity is None:
   self.activity = torch.zeros_like(x)
   self.activity = self.activity * 0.9 + x * 0.1
 if training:
   weight_update = self.plasticity_rate * (self.activity.mean(dim=0) * x.mean(dim=0))
   weight_update = weight_update.unsqueeze(0).repeat(self.fc.weight.data.size(0), 1)
   self.fc.weight.data += weight_update
 return torch.relu(self.fc(x))

This neuron updates its internal activity based on input, adjusts its weights during training, and applies a non-linear activation (ReLU) to its output.

Contextual Memory Layer

The Contextual Memory Layer allows the network to maintain information about past inputs, enabling it to process sequence-dependent data effectively.

Key features:
- Memory update: Maintains a memory of past inputs with a decay factor.
- Memory integration: Combines current input with memory information.

Here’s a simplified implementation of the Contextual Memory Layer:

 class ContextualMemoryLayer(nn.Module):
 def __init__(self, input_dim, output_dim, memory_size=256):
   super(ContextualMemoryLayer, self).__init__()
     self.memory = nn.Parameter(torch.zeros(1, memory_size, input_dim))
     self.fc = nn.Linear(input_dim * 2, output_dim)
     self.memory_decay = 0.9
 def forward(self, x):
   batch_size = x.size(0)
   if self.memory.size(0) != batch_size:
     self.memory = self.memory.expand(batch_size, -1, -1)

   self.memory = nn.Parameter(self.memory * self.memory_decay + x.unsqueeze(1) * (1 - self.memory_decay))

   memory_mean = self.memory.mean(dim=1)
   combined_input = torch.cat([x, memory_mean], dim=-1)
   return torch.relu(self.fc(combined_input))

This layer updates its memory based on new inputs, computes the mean of the memory, and combines it with the current input before processing.

Dynamic Attention Layer

The Dynamic Attention Layer enables the network to focus on relevant features based on the current context and past activations.

Key features:
- Attention computation: Calculates attention weights based on the difference between current and previous activations.
- Attention application: Modulates the input using computed attention weights.

Here’s a simplified implementation of the Dynamic Attention Layer:

class DynamicAttentionLayer(nn.Module):
 def __init__(self, input_dim, output_dim):
   super(DynamicAttentionLayer, self).__init__()
     self.fc = nn.Linear(input_dim, output_dim)

 def forward(self, x, prev_activations):
   attention_weights = torch.tanh(torch.abs(prev_activations - x))
   weighted_input = x * attention_weights
   return torch.relu(self.fc(weighted_input))

This layer computes attention weights based on the difference between current and previous activations, applies these weights to the input, and processes the result through a linear layer with ReLU activation.

Putting It All Together: The Synaptic Plasticity Network

The Synaptic Plasticity Network combines these components to create a powerful, adaptive neural network architecture.

Here’s a simplified implementation of the complete Synaptic Plasticity Network:

class SynapticPlasticityNetwork(nn.Module):
 def __init__(self, input_dim, output_dim, hidden_dim=128, plasticity_rate=0.01):
   super(SynapticPlasticityNetwork, self).__init__()
     self.synaptic_layer = SynapticPlasticityNeuron(input_dim, hidden_dim, plasticity_rate)
     self.contextual_layer = ContextualMemoryLayer(hidden_dim, hidden_dim)
     self.dynamic_attention_layer = DynamicAttentionLayer(hidden_dim, hidden_dim)
     self.fc_output = nn.Linear(hidden_dim, output_dim)
     self.prev_activations = None
 def forward(self, x, training=False):
   x = self.synaptic_layer(x, training=training)
   x = self.contextual_layer(x)
   if self.prev_activations is None:
     self.prev_activations = torch.zeros_like(x)
   x = self.dynamic_attention_layer(x, self.prev_activations)
   self.prev_activations = x.detach()
   return self.fc_output(x)
 def reset_memory(self):
   self.prev_activations = None
   if hasattr(self.contextual_layer, 'memory'):
     self.contextual_layer.memory.data.zero_()

This network processes input through the Synaptic Plasticity Neuron, Contextual Memory Layer, and Dynamic Attention Layer before producing the final output.

Formula that encapsulates the key operations of the Synaptic Plasticity Network.

Formula for the Synaptic Plasticity Network can be expressed as:

 y(t) = f_out(f_DA(f_CM(f_SP(x(t)))))

Where:

• y(t) is the network output at time t
• x(t) is the network input at time t
• f_SP is the Synaptic Plasticity function
• f_CM is the Contextual Memory function
• f_DA is the Dynamic Attention function
• f_out is the output layer function

Each function can be further defined as:

1. f_SP(x(t)) = ReLU(W(t) * x(t) + b) Where W(t) = W(t-1) + η * (mean(a(t)) * mean(x(t))) and a(t) = 0.9 * a(t-1) + 0.1 * x(t)
2. f_CM(x) = ReLU(W_CM * [x, mean(m(t))] + b_CM) Where m(t) = 0.9 * m(t-1) + 0.1 * x
3. f_DA(x) = ReLU(W_DA * (x * tanh(|x_prev — x|)) + b_DA)
4. f_out(x) = W_out * x + b_out

Let me break it down:

1. The input x(t) first goes through the Synaptic Plasticity function (f_SP). This function applies the weight matrix W(t), which is updated based on the correlation between mean activity and mean input.
2. The output of f_SP then passes through the Contextual Memory function (f_CM). This function incorporates information from a decaying memory of past inputs.
3. Next, the Dynamic Attention function (f_DA) is applied. This function modulates the input based on the difference between current and previous activations.
4. Finally, the output layer function (f_out) produces the network’s final output.

Each of these functions represents a key component of the biologically-inspired architecture:

• f_SP captures synaptic plasticity, allowing the network to adapt its weights based on input patterns.
• f_CM provides a form of short-term memory, allowing the network to consider past context.
• f_DA implements a simple attention mechanism, allowing the network to focus on changes in input.

This formula provides a high-level view of how these components interact to process input and produce output in the Synaptic Plasticity Network. It’s worth noting that while this formula captures the essence of the network’s operation, the actual implementation involves more detailed computations, particularly in terms of how each component processes batches of data and handles multi-dimensional inputs and outputs.

Implementation in PyTorch

To use the Synaptic Plasticity Network in a PyTorch project, you can simply instantiate the `SynapticPlasticityNetwork` class and use it like any other PyTorch module. Here’s an example:

import torch
import torch.optim as optim
# Initialize the network
input_dim = 10
output_dim = 2
model = SynapticPlasticityNetwork(input_dim=input_dim, output_dim=output_dim, hidden_dim=64, plasticity_rate=0.01)
# Define loss function and optimizer
criterion = nn.MSELoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)
# Training loop
for epoch in range(num_epochs):
 for batch in dataloader:
 inputs, targets = batch
 model.reset_memory() # Reset memory for each new sequence

 # Forward pass
 outputs = model(inputs, training=True)
 loss = criterion(outputs, targets)

 # Backward pass and optimization
 optimizer.zero_grad()
 loss.backward()
 optimizer.step()

# Inference
model.eval()
with torch.no_grad():
 model.reset_memory()
 outputs = model(test_inputs, training=False)

Practical Applications and Use Cases

Synaptic Plasticity Networks are particularly well-suited for tasks that involve temporal dependencies, adaptive learning, or context-sensitive processing. Some potential applications include:

1. Natural Language Processing (NLP):
 — Sentiment analysis: The network can adapt to changing contexts in text.
 — Language translation: It can maintain context across sentences.

2. Time Series Analysis:
 — Financial forecasting: Adapting to changing market conditions.
 — Weather prediction: Capturing long-term dependencies in meteorological data.

3. Robotics and Control Systems:
 — Adaptive control: The network can adjust to changing environmental conditions.
 — Motor learning: Mimicking the way biological systems learn and refine motor skills.

4. Anomaly Detection:
 — Network security: Adapting to new types of cyber threats.
 — Industrial monitoring: Detecting unusual patterns in sensor data.

5. Personalization Systems:
 — Recommender systems: Adapting to changing user preferences over time.
 — Adaptive user interfaces: Modifying UI based on user behavior.

Example: Adaptive Time Series Forecasting

Let’s consider a simple example of using a Synaptic Plasticity Network for adaptive time series forecasting:

import numpy as np
import torch
from torch.utils.data import DataLoader, TensorDataset

# Generate a simple time series with a changing pattern
def generate_time_series(length, change_point):
    t = np.arange(length)
    series = np.sin(0.1 * t) + np.random.normal(0, 0.1, length)
    series[change_point:] += 0.5 * np.sin(0.2 * t[change_point:])
    return series

# Generate data
series = generate_time_series(1000, 500)
X = torch.FloatTensor(series[:-1]).unsqueeze(1)
y = torch.FloatTensor(series[1:]).unsqueeze(1)

# Create DataLoader
dataset = TensorDataset(X, y)
dataloader = DataLoader(dataset, batch_size=32, shuffle=False)

# Initialize model
model = SynapticPlasticityNetwork(input_dim=1, output_dim=1, hidden_dim=32, plasticity_rate=0.01)
criterion = nn.MSELoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)

# Training loop
for epoch in range(50):
    model.reset_memory()
    for inputs, targets in dataloader:
        outputs = model(inputs, training=True)
        loss = criterion(outputs, targets)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

    if epoch % 10 == 0:
        print(f"Epoch {epoch}, Loss: {loss.item()}")

# Evaluation
model.eval()
with torch.no_grad():
    model.reset_memory()
    predictions = []
    for inputs, _ in dataloader:
        output = model(inputs, training=False)
        predictions.append(output)

predictions = torch.cat(predictions, dim=0).numpy()

# Plot results
import matplotlib.pyplot as plt
plt.figure(figsize=(12, 6))
plt.plot(series[1:], label='True')
plt.plot(predictions, label='Predicted')
plt.axvline(x=500, color='r', linestyle='--', label='Change Point')
plt.legend()
plt.title('Adaptive Time Series Forecasting with Synaptic Plasticity Network')
plt.show()

This example demonstrates how a Synaptic Plasticity Network can adapt to changing patterns in a time series, making it suitable for real-world scenarios where underlying data distributions may shift over time.

Advanced Concepts and Future Directions

As research in biologically-inspired neural networks continues to advance, several exciting directions for Synaptic Plasticity Networks emerge:

1. Meta-Plasticity:
 Implementing higher-order plasticity rules that allow the network to learn how to adapt its plasticity based on task requirements.

2. Neuromodulation:
 Incorporating neuromodulatory signals that can globally affect the plasticity and behavior of the network, mimicking the role of neurotransmitters in biological brains.

3. Structural Plasticity:
 Allowing the network to dynamically create or prune connections, changing its topology in response to input patterns.

4. Integration with Other Architectures:
 Combining Synaptic Plasticity Networks with other powerful architectures like Transformers or Graph Neural Networks to create hybrid models with enhanced capabilities.

5. Continual Learning:
 Leveraging the adaptive nature of SPNs to develop models that can learn continuously without catastrophic forgetting.

6. Interpretability:
 Developing techniques to visualize and interpret the learned representations and adaptive behaviors of Synaptic Plasticity Networks.

Conclusion

Synaptic Plasticity Networks represent a fascinating bridge between biological neural systems and artificial neural networks. By incorporating mechanisms inspired by neural plasticity, these networks offer enhanced adaptability, context-sensitivity, and dynamic focus.

As we’ve explored in this blog post, SPNs consist of three main components: Synaptic Plasticity Neurons, Contextual Memory Layers, and Dynamic Attention Layers. These components work in concert to create a powerful, adaptive architecture suitable for a wide range of applications, particularly those involving temporal dependencies or changing data distributions.

While SPNs are still an active area of research, they show great promise in advancing the field of neural networks towards more flexible, adaptive, and biologically-plausible models. As we continue to draw inspiration from the incredible adaptability of biological brains, we can expect to see even more innovative architectures that push the boundaries of what’s possible in machine learning and artificial intelligence.

Here’s the colab notebook for complete code

---
